Project development Time: July 2021

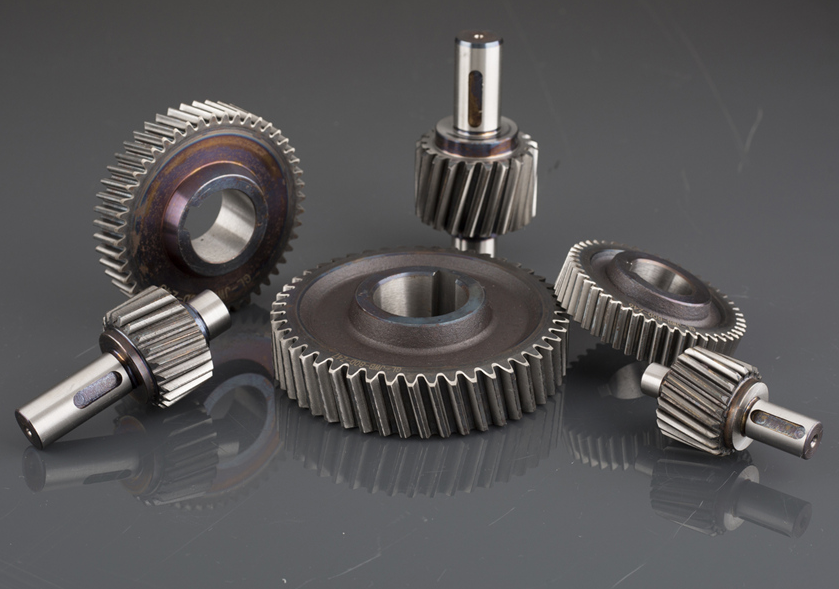

Industry:Shalf gear or Rotation shaft

Used material:Iron MIM4605

Qty: 80,000pcs mim parts per year

Benefit: Cost Saving

Main Forming Process: Metal Injection Moulding

Qty: 200,000pcs per year

Client Introduce: The company is one of the Chinese leading communication equipment companies offering a diverse models of communication chassis products and services in Telecommunication company, computers and phones.

Case background

This is a part that one of our China customers needs to customize a shaft. The customer is the top hardware assembly and industrial manufacturer in China, and has strict quality requirements. They request the demension 36+-0.1mm and cannot exceed any tolerance.The material needed to be highly magnetic and corrosion resistant and have Stable and consistent concentricity , hence the part had to go through various processes like surface coating electroless nickel alloy. Another difficlut is the part have a long and thin cylinder in a arc structure demension. We should us CNC process to complete it. This part MIM 4605 with high physical properties with46mm*19mm*6mm, weight 16.9g. Harber MIM delivery the ripe experiences and solution.

Solution

Harber MIM was the best place for the above-mentioned manufacturer. Harber MIM is very professional on producing complex shape metal parts, we have at lease 20 years experiecences and we are the first team in metal injection molding technology in China. MIM allows free design of 3D shape like injection molding. Because MIM is a forming process,

The additional product shape will not increase the cost. If the weight is reduced through shape design, the cost will decrease,

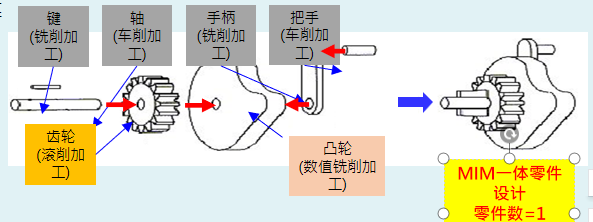

This makes MIM one of the ideal ways to combine more than one independent part into a multi-functional part.

MIM design rules are very close to injection molding, so it is easy to adapt to metal parts with complex three-level shape.

In this way, MIM could save a lot money for customer and provide a stable quality parts.

Please contact us by email sales@harber-mim.com
